Thermal camera Optris 640i

The state-of-the-art OPTRIS PI 640i thermography system enables precise non-contact temperature measurement. The system consists of:

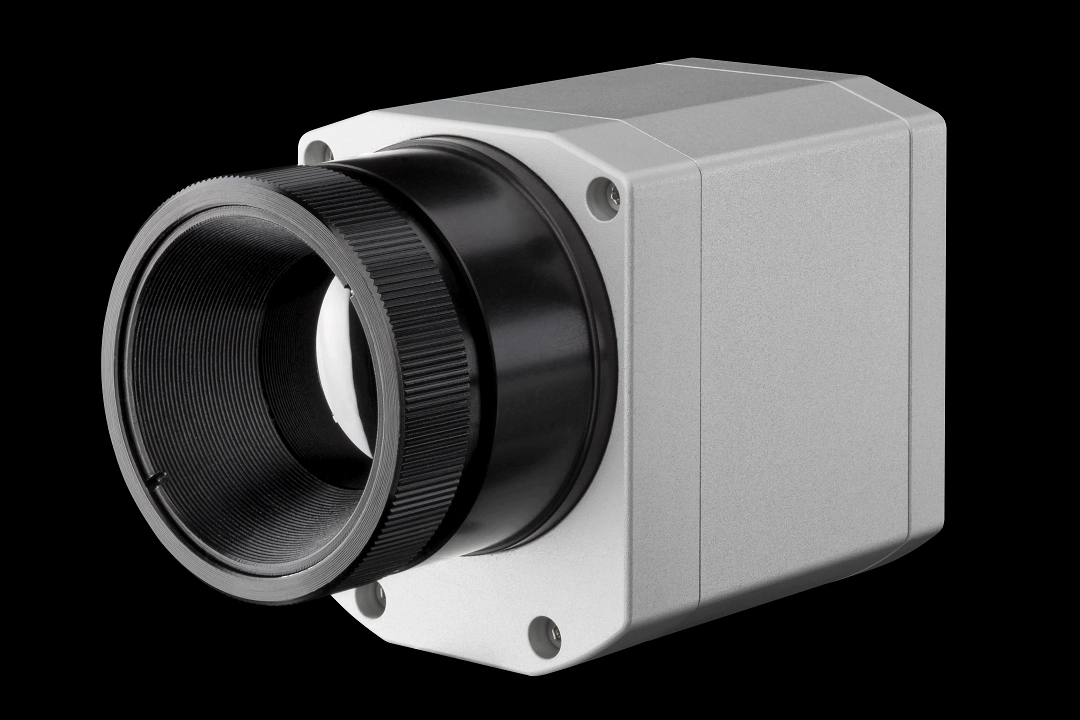

• The Optris PI 640i thermo camera: A high quality infrared camera with a matrix resolution of 640 x 480 pixels, which allows the precise capture of temperature distributions on the surface of the subjects. The camera thus provides high resolution thermographic images for quantitative thermal analysis.
• 5 m high-temperature cable: Temperature-resistant connection cable for operation in environments up to 180°C.
• Optics (33x25 FOV / f=18.7 mm): Optical system with 33° x 25° field of view and 18.7 mm focal length. The system includes a calibration certificate guaranteeing the traceability and accuracy of the measured temperatures.

The system is used to accurately measure and monitor temperature changes of samples during laboratory tests, allowing reliable measurements in real time.
